Products - Rubber Hoses - Hydraulic Hoses - EFG5K Spiral Wire Hose-SAE 100R13

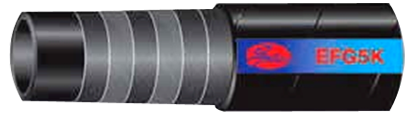

EFG5K Spiral Wire Hose-SAE 100R13

Meets Flame Resistance Acceptance Designation "MSHA 2G" , For Bidegradable Hydraulic Fluids

Application
Extremely high-pressure hydraulic applications. EFG5K is designed to meet all requirements of SAE 100R13 specifications and performance requirements of EN 856 4SH (-24 , AND -32 )and EN 856 R13.Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based
fluids. Superior impulsw performance: tested to1,000000 impulse cycles.

Construction
Tube: Black, oil resistant, synthetic rubber (Nitrile -Type C).
Reinforcement: Four (six for -20) alternating layers of spiraled, high- tensile steel.
Cover: Black, oil resistant, synthetic rubber (Neoprene -Type A). Dual red print layline

Description

Product No.

Hose ID

Hose OD

Working Pressure

Min Burest
Pressure

Min. Bend
Radius

Packing
Spaecs.

Services
Temp. Range

6EFG5K 8EFG5K
10EFG5K
12EFG5K
16EFG5K
20EFG5K
24EFG5K
32EFG5K

**
**
**
4651-4903
4651-4904
**
**
**

Inch	mm
3/8 1/2 5/8 3/4 1 1-1/4 1-1/2 2	9.5 12.7 15.9 19.1 25.4 31.8 38.1 50.8

20.3
23.9
28.2
32
38.9
50.0
57.0
71.1

psi	bar
5000 5000 5000 5000 5000 5000 5000 5000	345 345 345 345 345 345 345 345

psi	bar
20000 20000 20000 20000 20000 20000 20000 20000	1380 1380 1380 1380 1380 1380 1380 1380

inch

5.0
7.0
8.5
9.5
12.0
16.5
20.0
25.0

i
i
i
f
f
i
i
i

-40°c
to
+121°c
#
