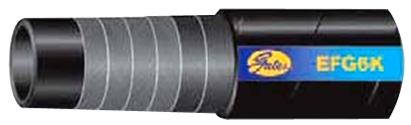

EFG6K Spiral Wire Hose-SAE 100R15

Meets Flame Resistance Acceptance Designation "MSHA 2G" , For Bidegradable Hydraulic Fluids

Application
Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12) and EN 856 4SH (-12, -16, and -20). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Superior impulse performance : testted to 1,000,000 impulse cycles

Construction
Tube: Black, oil resistant, synthetic rubber (Nitrile -Type C).
Reinforcement: Four (six for -20) alternating layers of spiraled, high- tensile steel.
Cover: Black, oil resistant, synthetic rubber (Neoprene -Type A). Blue stripe with gold print layline.




Description

Product No.

Hose ID

Hose OD

Working Pressure

Min Burest
Pressure

Min. Bend
Radius

Packing
Spaecs.

Services
Temp. Range



6EFG6K
8EFG6K
10EFG6K
12EFG6K
16EFG6K
20EFG6K



4651-1396
4651-1371
4651-1672
4651-4909
4651-4910
4651-1290

Inch

mm

3/8
1/2
58
3/4
1
1-1/4

9.5
12.7
15.9
19.0
25.4
31.8

mm

20.3
22.7
27.7
31.5
33.9
50.0

psi

bar

6000
6000
6000
6000
6000
6000

414
414
414
414
414
414

psi

bar

24000
24000
24000
24000
24000
24000

1656
1656
1656
1656
1656
1656

inch

5.0
7.0
8.0
9.5
12.0
16.5



i
i
i
e
e
i



-40°c
to
+121°c
#
