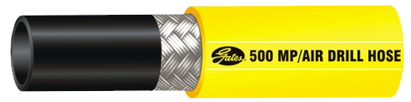

Air Drill (Black) Hose

Application
Recommended for heavey duty, high pressure use on industrial, construction & pneumatic mining applications , requiring an extra heavy duty hose with an oil resistant tube abrasionresistant cover.

Construction
Tube: Specially compounded Nitrile Rubber ,Black.
Reinforcement: Single braid of high tensile steel wire.
Cover:
Option1:Specially compounded highly abrasion resistant naturalrubber. Black.
Option 2 : Highly abrasion resistant modified natrile rubber. Yellow.
All sizeswith perforated cover.
Yellow cover MSHA IC - C, Flame resistant.




Normaal I.D.

Mean O.D.

Working
Pressure

Minimum Brust
Pressure

Vacuum

Bend
Radius

Packing Spaecs.
Lenght In Meters

Services
Temp. Range

Inch

mm

3/4"
1"
1 /14"
1 1/2"
2"
2 1/2"
3"

20.00
25.00
31.50
38.00
50.00
63.50
76.50

Inch

mm

1.11
1.44
1.74
1.99
2.50
3.14
3.67

28.30
36.60
44.20
50.50
63.50
79.80
93.20

kg/cm2

Mpa

psi

34.50
34.50
34.50
34.50
34.50
34.50
34.50

3.45
3.45
3.45
3.45
3.45
3.45
3.45

500.00
500.00
500.00
500.00
500.00
500.00
500.00

kg/cm2

Mpa

psi

138.00
138.00
138.00
138.00
138.00
138.00
138.00

13.80
13.80
13.80
13.80
13.80
13.80
13.80

2000.00
2000.00
2000.00
2000.00
2000.00
2000.00
2000.00

in.Hg

25.00
25.00
15.00
15.00
15.00
10.00
10.00

mm

inch

152.00
200.60
254.00
304.00
355.00
762.00
914.00

6.00
7.90
10.00
12.00
14.00
30.00
36.00

Min.(Lgth)

Max.(Lgth)

15.00
15.00
15.00
15.00
15.00
15.00
15.00

40.50
40.50
40.50
40.50
40.50
40.50
40.50

Centigrade

-30°c
to
+82°c
