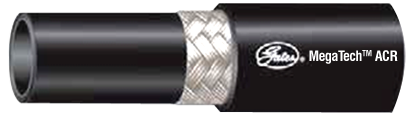

MegaTech ACR

Hot Oil / Air Return Line Hose

Application
Pressurized hot oil return lines and rotary oil/air compressor lines

Construction
Tube: Black, specifically compounded for temperature and chemical resistance (CPE).
Reinforcement: one briad, hightensile steel wire.
Cover: Black, oil & abrasion resistant polyester braid. Flame resistant "US MSHA2G"




Description

Product No.

Hose ID

Hose OD

Working Pressure

Min Burest
Pressure

Min. Bend
Radius

Packing
Spaecs.

Services
Temp. Range



4ACR
6ACR
8ACR
10ACR
12ACR
16ACR
20ACR
24ACR
32ACR
40ACR
48ACR



**
4657-2340
4657-2341
4657-2342
4657-2336
4657-2337
4657-2338
4657-0204
4657-0805
4657-4908
4657-4909

Inch

mm

1/4
3/8
1/2
5/8
3/4
1
1-1/4
1-1/2
2
2-1/2
3

6.4
9.5
12.7
15.9
19.0
25.4
31.8
38.1
50.8
63.5
76.4

mm

13.2
17
19.3
24.1
26.4
33.0
40.0
50.0
63.0
75.4
88.9

psi

bar

1000
1000
1000
1000
1000
1000
1000
500
500
500
500

69
69
69
69
69
69
69
35
35
35
35

psi

bar

4000
4000
4000
4000
4000
4000
4000
2000
2000
2000
2000

276
276
276
276
276
276
276
140
140
140
140

inch

3.0
2.5
3.5
4.0
4.75
6.0
8.5
15.0
18.0
22.0
24.0



i
i
i
i
i
i
i
i
c
c
i



-40°c
to
+149°c
#
