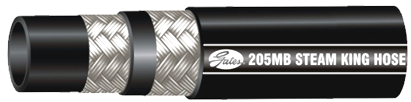

Steam King Hose

Exceeds IS : 10655 Type 3 & BS : 5342 Type 2

Application
Recommended for heavy-duty industrial uses including heat control, melting of substance such as wax and glue, thawing, cleaning and steam tranfer application. It will handle all type of steam-saturated and superheated up to 185 psi and +232 degree centigrade. NOTE : Do not alternate change between water and steam.

Construction
Tube: EPDM. Black.
Reinforcement: Single briad of high tensile coated steel wire for siz 12.7mm. Two briad of high brass coated steel wire for size 20.0mmto 50.0mm.
Cover: EPDM. Black . All sizes are preforated.




Normaal I.D.

Mean O.D.

Working
Pressure

Minimum Brust
Pressure

Vacuum

Bend
Radius

Packing Spaecs.
Lenght In Meters

Services
Temp. Range

Inch

mm

3/4"
1 "
1 1/4"
1 1/2
2"

20.00
25.00
31.50
38.00
50.00

Inch

mm

1.27
1.52
1.81
2.15
2.66

32.30
38.50
46.00
54.30
67.50

kg/cm2

Mpa

psi

17.20 17.20
17.20
17.20
17.20

1.72
1.72
1.72
1.72
1.72

250.00
250.00
250.00
250.00
250.00

kg/cm2

Mpa

psi

170.00
170.00
170.00
170.00
170.00

17.00
17.00
17.00
17.00
17.00

2500.00
2500.00
2500.00
2500.00
2500.00

in.Hg

20.00
20.00
20.00
10.00
10.00

mm

inch

228.60
279.40
406.40
508.00
635.00

9.00
11.00
16.00
20.00
25.00

Min.(Lgth)

Max.(Lgth)

15.00
15.00
15.00
15.00
15.00

40.50
40.50
40.50
40.50
40.50

Centigrade

-40°c
to
+232°c
